KSS BALL SCREWS · ROLLED
SR & SRT Series Ball Screws
Rolled ball screws in Ct7 and Ct10 grades with flanged nuts — a cost-effective choice for automation, positioning and general motion-control applications.
Ø4–15mm
SHAFT DIAMETER
1–20mm
LEAD
Ct7/Ct10
PRECISION GRADES
CHOOSE YOUR CONFIGURATION
Same footprint. Two ways to finish it.
SR and SRT share the same diameters, leads and load ratings — the difference is the end-journal. Jump straight to the model range you need.

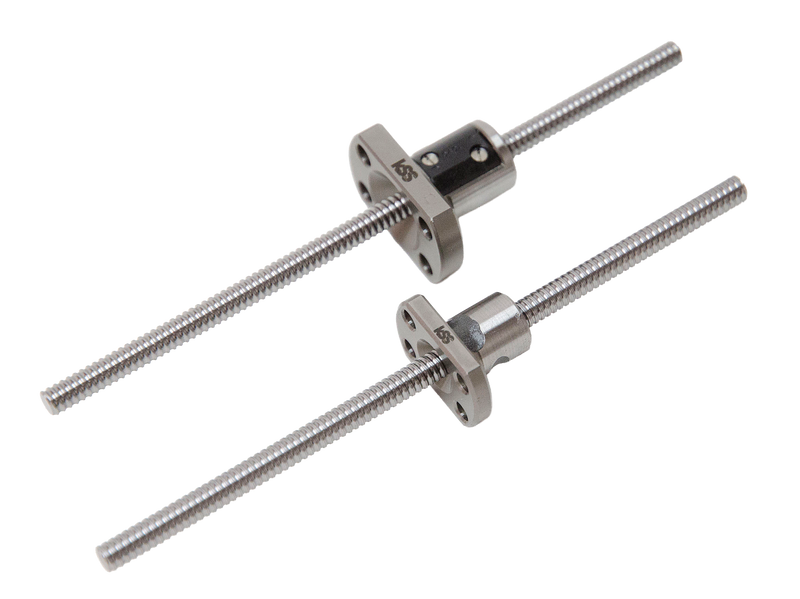

SR Series
Standard rolled ball screw. Fixed end-journal length, ready to install as-is.

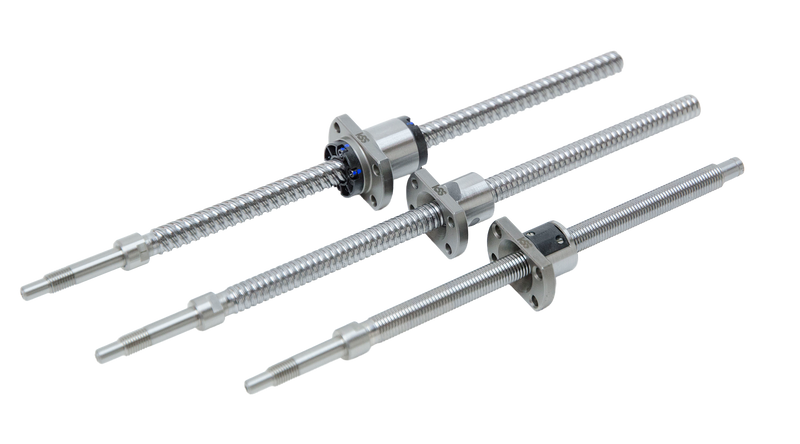

SRT Series
Enlarged fixed-side journal, machined to your spec — end configurations compatible with the SG Series.
Series Overview
Rolled ball screws in Ct7 and Ct10 grades, spanning Ø4 mm to Ø15 mm shafts with leads from 1 mm to 20 mm. Both series ship with unfinished end-journals, so you machine them to suit your design — SR is the standard, cost-effective option, while SRT enlarges the fixed-side journal beyond the shaft diameter for greater design flexibility and end-journal configurations compatible with the SG Series. Stainless steel versions are stocked as the SSR and SSRT series.
Specifications
SR Series model range
34 base models, Ø4–15 mm shafts, 1–20 mm leads. SR ships with a fixed end-journal length, ready to install.
| Ball Screw Model | Shaft Dia mm | Lead mm | Max Travel mm | CaN | C0aN | |
|---|---|---|---|---|---|---|
| SR0401 | 4 | 1 | 180 | 560 | 790 | View SR0401 |
| SR0401K | 4 | 1 | 80 | 300 | 430 | View SR0401K |
| SR0402 | 4 | 2 | 180 | 420 | 570 | View SR0402 |
| SR0504 | 5 | 4 | 175 | 470 | 720 | View SR0504 |
| SR0601 | 6 | 1 | 230 | 680 | 1,200 | View SR0601 |
| SR0601K | 6 | 1 | 175 | 560 | 950 | View SR0601K |
| SR0602 | 6 | 2 | 230 | 750 | 1,200 | View SR0602 |
| SR0606 | 6 | 6 | 230 | 870 | 1,450 | View SR0606 |
| SR0610 | 6 | 10 | 225 | 950 | 1,600 | View SR0610 |
| SR0801 | 8 | 1 | 330 | 780 | 1,650 | View SR0801 |
| SR0801K | 8 | 1 | 200 | 650 | 1,300 | View SR0801K |
| SR0802 | 8 | 2 | 325 | 2,400 | 4,100 | View SR0802 |
| SR0802K | 8 | 2 | 200 | 1,300 | 2,300 | View SR0802K |
| SR0802.5 | 8 | 2.5 | 330 | 1,850 | 3,000 | View SR0802.5 |
| SR0805 | 8 | 5 | 320 | 1,850 | 3,000 | View SR0805 |
| SR0808 | 8 | 8 | 330 | 2,200 | 3,800 | View SR0808 |
| SR0810 | 8 | 10 | 325 | 2,200 | 3,800 | View SR0810 |
| SR0812 | 8 | 12 | 320 | 2,200 | 4,000 | View SR0812 |
| SR0820 | 8 | 20 | 325 | 1,650 | 3,150 | View SR0820 |
| SR1002 | 10 | 2 | 325 | 2,700 | 5,300 | View SR1002 |
| SR1002K | 10 | 2 | 200 | 1,450 | 3,000 | View SR1002K |
| SR1004 | 10 | 4 | 370 | 3,000 | 5,200 | View SR1004 |
| SR1005 | 10 | 5 | 370 | 3,000 | 5,200 | View SR1005 |
| SR1010 | 10 | 10 | 375 | 3,300 | 5,900 | View SR1010 |
| SR1015 | 10 | 15 | 365 | 3,300 | 6,400 | View SR1015 |
| SR1020 | 10 | 20 | 375 | 2,100 | 4,000 | View SR1020 |
| SR1202 | 12 | 2 | 375 | 3,000 | 6,400 | View SR1202 |
| SR1202K | 12 | 2 | 250 | 1,600 | 3,700 | View SR1202K |
| SR1210 | 12 | 10 | 370 | 5,100 | 9,800 | View SR1210 |
| SR1402 | 14 | 2 | 425 | 3,200 | 7,500 | View SR1402 |
| SR1404 | 14 | 4 | 415 | 5,700 | 11,600 | View SR1404 |
| SR1505 | 15 | 5 | 965 | 8,900 | 17,000 | View SR1505 |
| SR1510 | 15 | 10 | 955 | 12,000 | 25,000 | View SR1510 |
| SR1520 | 15 | 20 | 945 | 8,000 | 16,000 | View SR1520 |
Ca = dynamic load rating C0a = static load rating Ranges span the configurable lengths per model
SRT Series model range
27 base models sharing SR's diameters and leads. SRT's end-journal is machined to order, so max travel is shown as a configurable range.
| Ball Screw Model | Shaft Dia mm | Lead mm | Max Travel mm | CaN | C0aN | |
|---|---|---|---|---|---|---|
| SRT0401 | 4 | 1 | 75–195 | 560 | 790 | View SRT0401 |
| SRT0401K | 4 | 1 | 60 | 300 | 430 | View SRT0401K |
| SRT0402 | 4 | 2 | 75–195 | 420 | 570 | View SRT0402 |
| SRT0504 | 5 | 4 | 70–190 | 470 | 720 | View SRT0504 |
| SRT0601 | 6 | 1 | 125–240 | 680 | 1,200 | View SRT0601 |
| SRT0601K | 6 | 1 | 70 | 560 | 950 | View SRT0601K |
| SRT0602 | 6 | 2 | 125–240 | 750 | 1,200 | View SRT0602 |
| SRT0606 | 6 | 6 | 125–240 | 870 | 1,450 | View SRT0606 |
| SRT0610 | 6 | 10 | 120–235 | 950 | 1,600 | View SRT0610 |
| SRT0801 | 8 | 1 | 175–335 | 780 | 1,650 | View SRT0801 |
| SRT0801K | 8 | 1 | 150 | 650 | 1,300 | View SRT0801K |
| SRT0802 | 8 | 2 | 170–330 | 2,400 | 4,100 | View SRT0802 |
| SRT0802K | 8 | 2 | 145 | 1,300 | 2,300 | View SRT0802K |
| SRT0802.5 | 8 | 2.5 | 180–340 | 1,850 | 3,000 | View SRT0802.5 |
| SRT0805 | 8 | 5 | 165–325 | 1,850 | 3,000 | View SRT0805 |
| SRT0808 | 8 | 8 | 175–335 | 2,200 | 3,800 | View SRT0808 |
| SRT0812 | 8 | 12 | 165–325 | 2,200 | 4,000 | View SRT0812 |
| SRT0820 | 8 | 20 | 170–330 | 1,650 | 3,150 | View SRT0820 |
| SRT1002 | 10 | 2 | 170–370 | 2,700 | 5,300 | View SRT1002 |
| SRT1002K | 10 | 2 | 175 | 1,450 | 3,000 | View SRT1002K |
| SRT1005 | 10 | 5 | 170–370 | 3,000 | 5,200 | View SRT1005 |
| SRT1010 | 10 | 10 | 170–370 | 3,300 | 5,900 | View SRT1010 |
| SRT1015 | 10 | 15 | 160–360 | 3,300 | 6,400 | View SRT1015 |
| SRT1020 | 10 | 20 | 170–370 | 2,100 | 4,000 | View SRT1020 |
| SRT1202 | 12 | 2 | 170–370 | 3,000 | 6,400 | View SRT1202 |
| SRT1202K | 12 | 2 | 245 | 1,600 | 3,700 | View SRT1202K |
| SRT1210 | 12 | 10 | 165–365 | 5,100 | 9,800 | View SRT1210 |
Ca = dynamic load rating C0a = static load rating Ranges span the configurable lengths per model
