KSS Ball Screws · SRT Series

SRT0820

Ø8mm
Shaft Diameter
20mm
Lead
Rolled
Thread Type
Configure Your Part
01
Lengths
?
OVERALL SCREW LENGTH
02
Precision
?
ISO ACCURACY GRADE
03
End Mach
?
END MACHINING
04
Lube
?
LUBRICATION
05
Nut Dir
?
NUT DIRECTION
Your Part Number
SRT0820
Request Quote Download 3D Model

Ca = dynamic load rating · C0a = static load rating. Configured part numbers are made to order; lead time confirmed on quote.

Technical Specifications

SRT0820 specifications

Fixed specifications for the SRT0820 base model. Configurable options (length, end machining, lube, nut direction) are set in the customizer above.

Technical Drawing Unit: mm

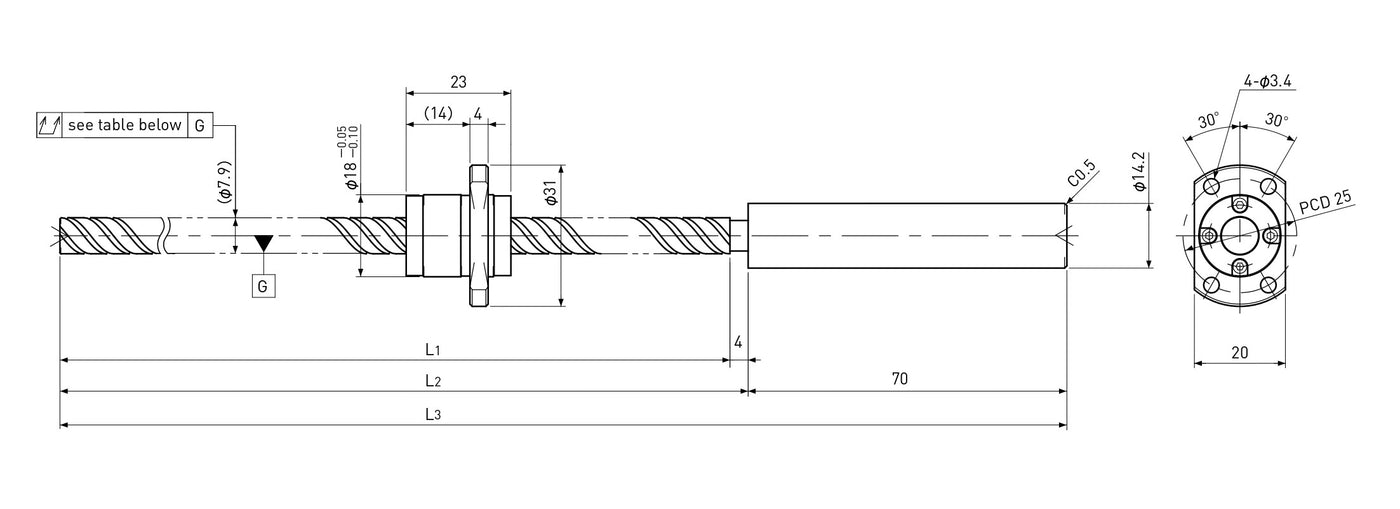

Ball screw technical drawing

Note 1）Thread length after end-journal machining · L4: Total length after end-journal machining.

Note 2）Absolute position of both Nuts related to the Screw Shaft is not under the control.

Specifications Unit: mm

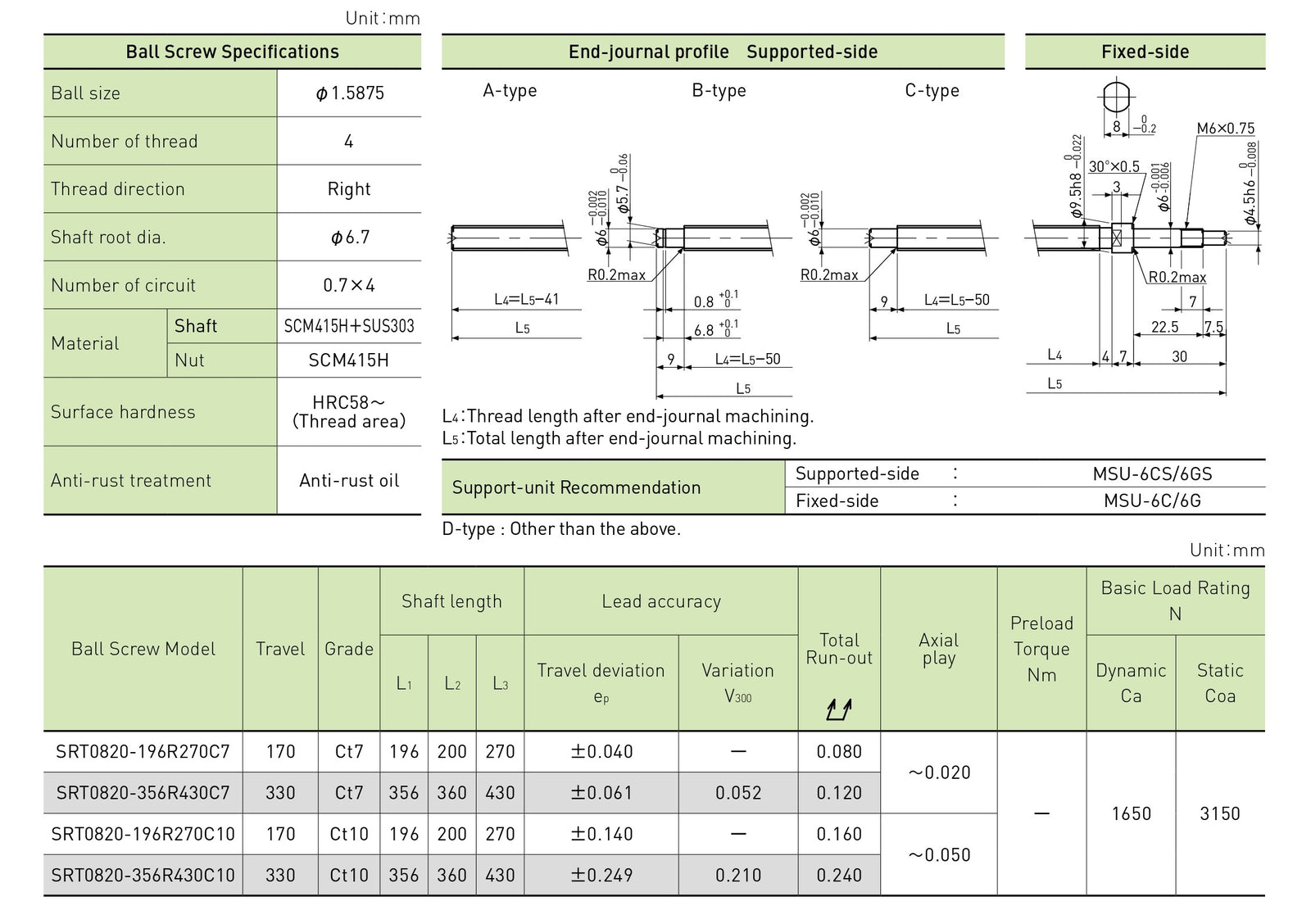

Specifications tables
Unit: mm · All specifications subject to manufacturing tolerances. Please refer to the catalog for the order code of end-journal machining.
Reference

Engineering resources

Datasheet, native CAD and the ball screw technical section.

PDF
SRT Series Datasheet

Full SRT Series catalog section — dimensions, load ratings, accuracy grades and end-machining patterns.

Download PDF
3D MODEL · STEP
CAD Resources

Download the native 3D / STEP model — drop it into your assembly to verify fit and envelope.

Browse 3D Model
Reference
Ball Screw Technical Section

Accuracy grades, load & life calculation, lead options and selection guidance for ball screws.

View technical section
BS-TECH
