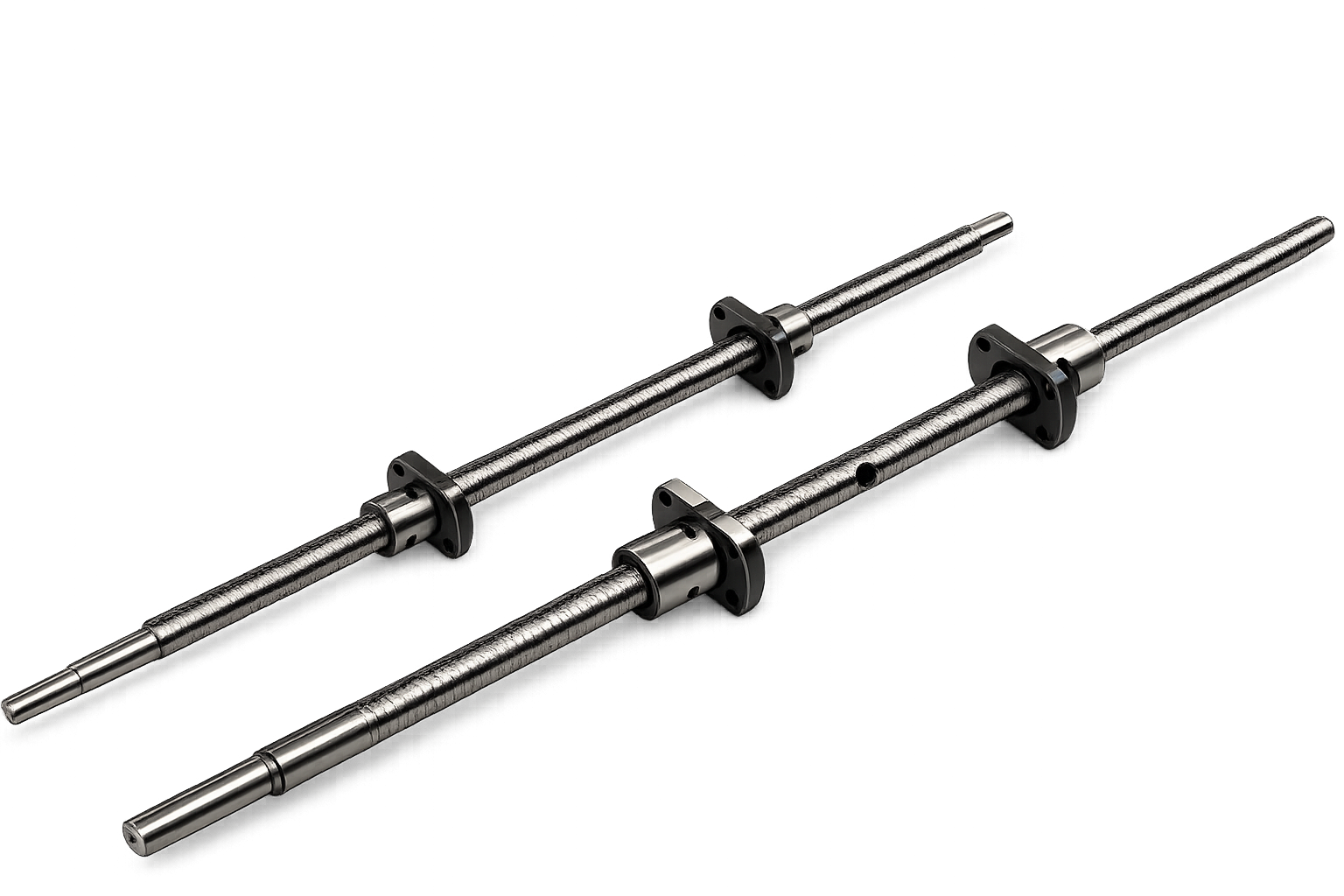

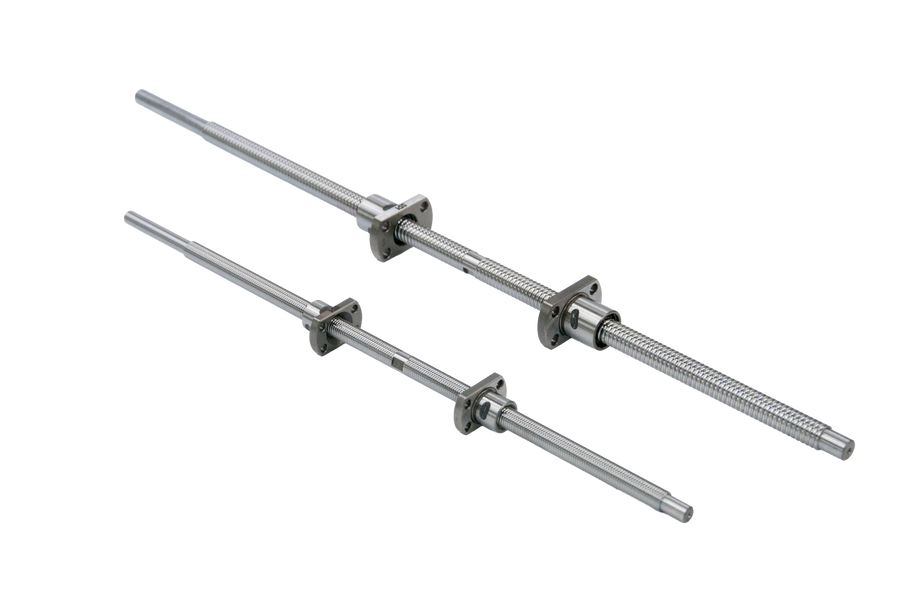

SD Series Ball Screws
Precision ground ball screws with flanged nuts.
✓ C3–C5 precision grades
✓ Bidirectional flanged-nut design
✓ Diameter range: Ø4 mm – Ø12 mm
Series Overview
Explore the full range of precision ball screw solutions engineered for demanding automation and motion control applications.
Specifications
SD Series model range
Six standard SD models. Select a model to view full specifications, accuracy-grade options and 3D CAD models.
| Ball Screw Model | Shaft Dia mm | Lead mm | Max Travel mm | CaN | C0aN | |
|---|---|---|---|---|---|---|
| SD0401 | 4 | 1 | 35 | 300 | 430 | View SD0401 |
| SD0601 | 6 | 1 | 65 | 550 | 1,000 | View SD0601 |
| SD0801 | 8 | 1 | 105 | 650 | 1,300 | View SD0801 |
| SD0802 | 8 | 2 | 100 | 1,300 | 2,300 | View SD0802 |
| SD1002 | 10 | 2 | 145 | 1,450 | 3,000 | View SD1002 |
| SD1202 | 12 | 2 | 160 | 1,600 | 3,700 | View SD1202 |
Ca = dynamic load rating C0a = static load rating Max Travel = maximum usable stroke
C3 vs C5 — Which grade do you need?
Both grades use the same SD Series ball screw geometry. The grade determines positional accuracy and is chosen based on your application requirements.
HIGH PRECISION
C3
ISO Accuracy Class 3
Highest standard grade for demanding positioning applications where maximum accuracy is required.
- Travel deviation ≤ 23 µm per 300 mm
- Required for high-speed & high-accuracy CNC
- Lower thermal distortion under sustained load
- Tighter lead accuracy tolerance across full stroke
Typical applications
CNC machine tools, semiconductor equipment, precision measurement systems, medical devices
STANDARD
C5
ISO Accuracy Class 5
Versatile standard grade for the majority of automation and motion control applications.
- Travel deviation ≤ 52 µm per 300 mm
- Ideal for general automation & robotics
- Cost-effective for high-volume production
- Compatible with all SD Series configurations
Typical applications
Industrial automation, 3D printing, pick-and-place, packaging machinery, general motion control
