SD0401

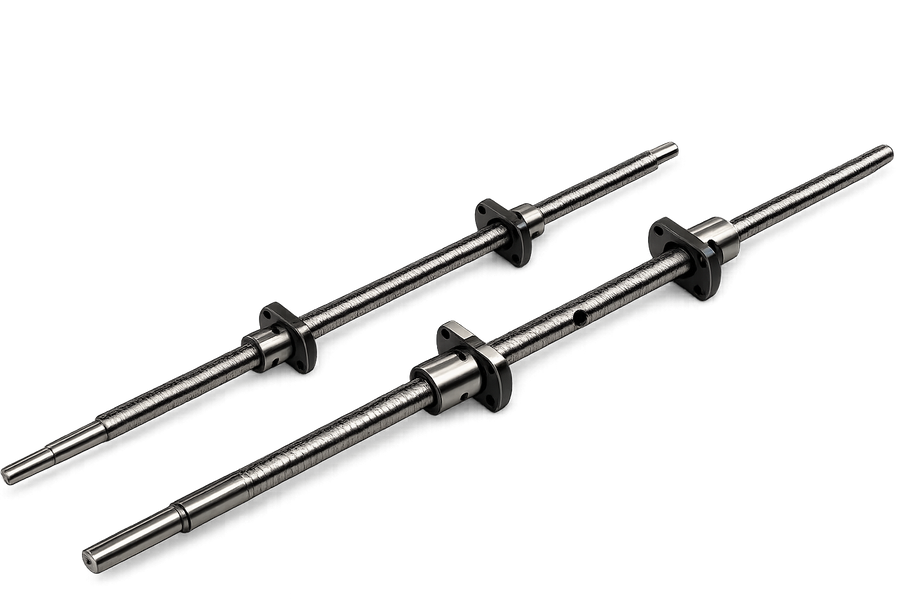

SD0401 is part of the SD Series bidirectional precision ground ball screws, designed with left-hand and right-hand threads for opposing motion applications. Available in C3 and C5 precision grades.
For alternate lengths or end machining, contact Amotion Systems.

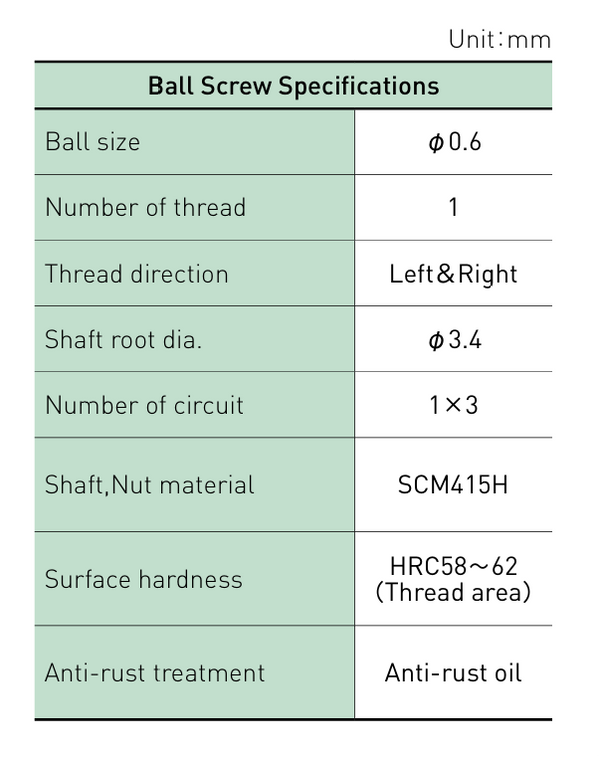

SD0401 specifications
Fixed specifications for the SD0401 base model. Configurable options (length, end machining, lube, nut direction) are set in the customizer above.

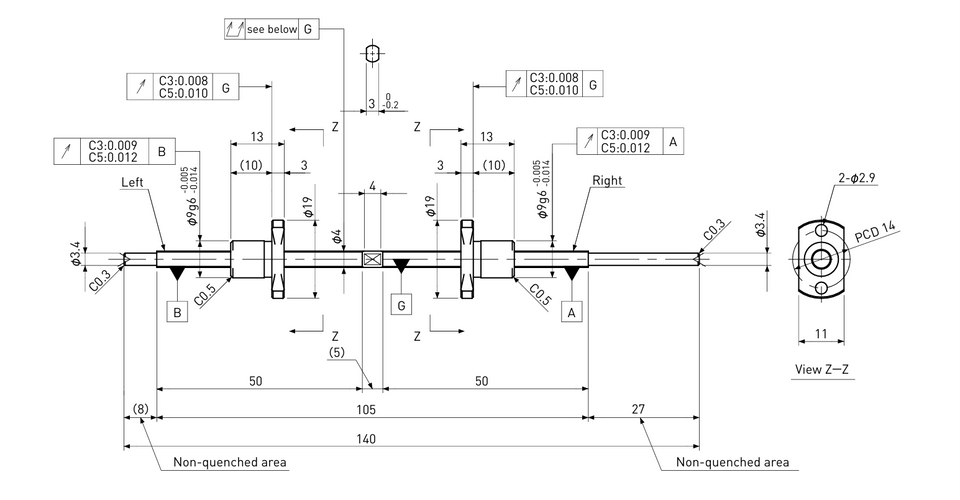

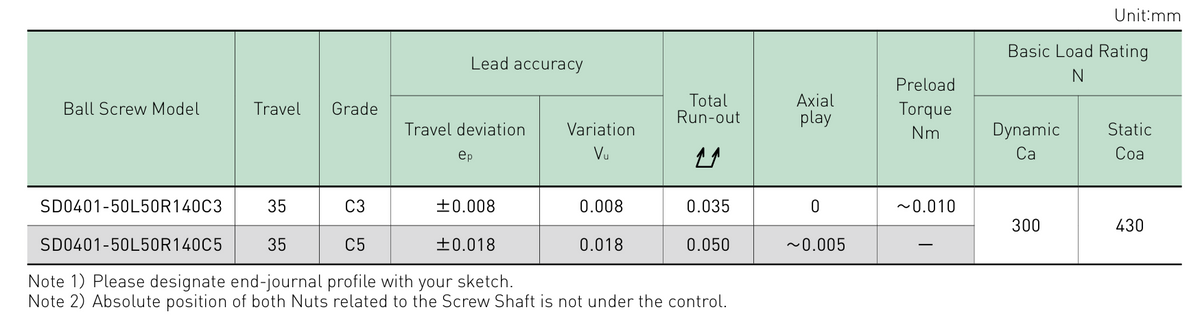

Note 1）Please designate end-journal profile with your sketch.
Note 2）Absolute position of both Nuts related to the Screw Shaft is not under the control.
Engineering resources
Datasheet, native CAD and the ball screw technical section for the SD0401.
Full SD Series catalog section — dimensions, load ratings, accuracy grades and end-machining patterns.
Download the native 3D / STEP model — drop it into your assembly to verify fit and envelope.
Accuracy grades, load & life calculation, lead options and selection guidance for ball screws.
