PSR0801K
Ø8mm
Shaft Diameter
1mm
Lead
Rolled
Thread Type
Configure Your Part
01
Precision Grade
?ISO ACCURACY GRADE
Your Part Number
PSR0801K-230R230
For alternate lengths or end machining, contact Amotion Systems.
Technical Specifications
PSR0801K specifications
Fixed specifications for the PSR0801K base model. Configurable options (length, end machining, lube, nut direction) are set in the customizer above.

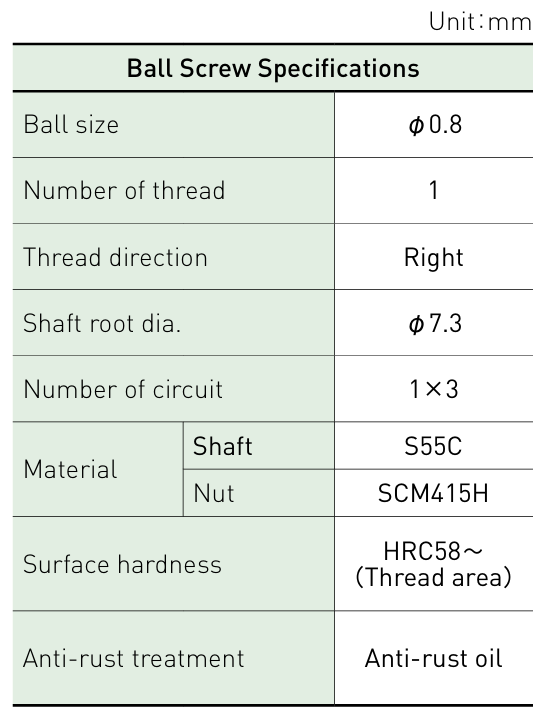

Component Specifications

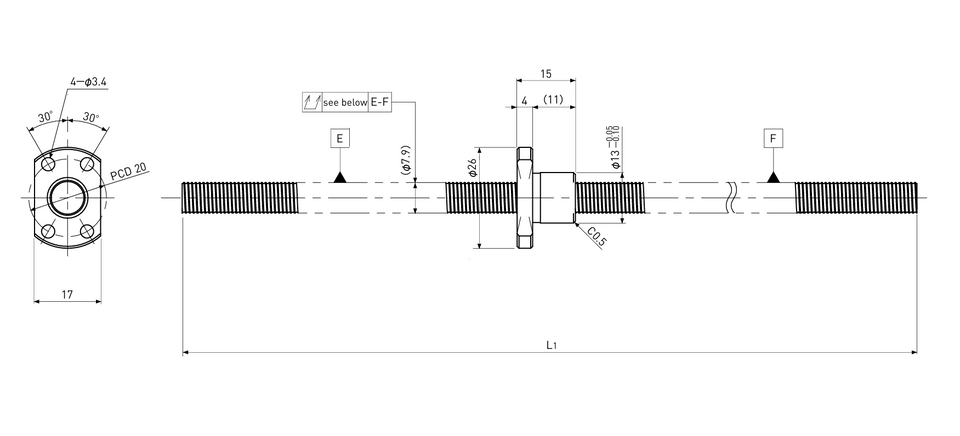

Technical Drawing
Unit: mm
Note 1）Please designate end-journal profile with your sketch.
Note 2）Absolute position of both Nuts related to the Screw Shaft is not under the control.

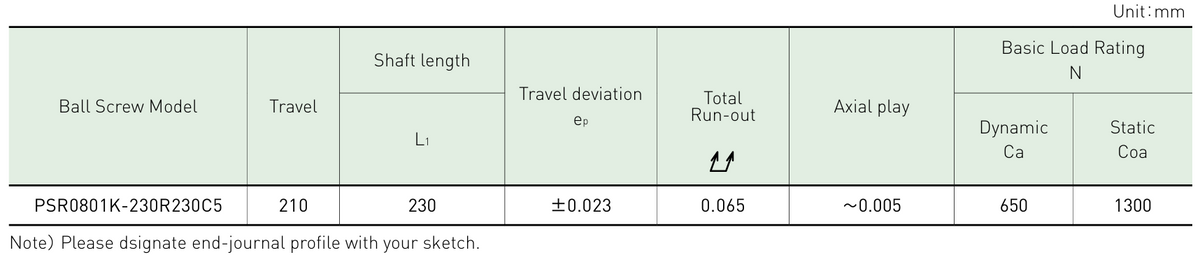

Performance Data
Unit: mm · All specifications subject to manufacturing tolerances.
