PSR0401K
Ø4mm
Shaft Diameter
1mm
Lead
Rolled
Thread Type
Configure Your Part
01
Precision Grade
?ISO ACCURACY GRADE
Your Part Number
PSR0401K-100R100
For alternate lengths or end machining, contact Amotion Systems.
Technical Specifications
PSR0401K specifications
Fixed specifications for the PSR0401K base model. Configurable options (length, end machining, lube, nut direction) are set in the customizer above.

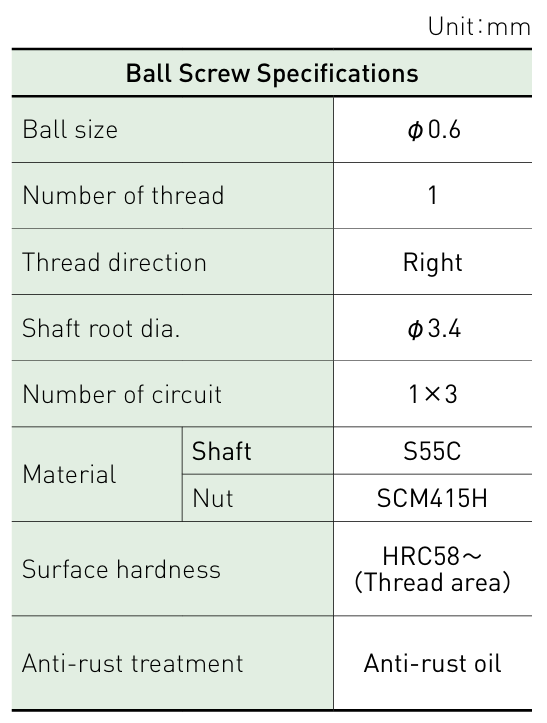

Component Specifications

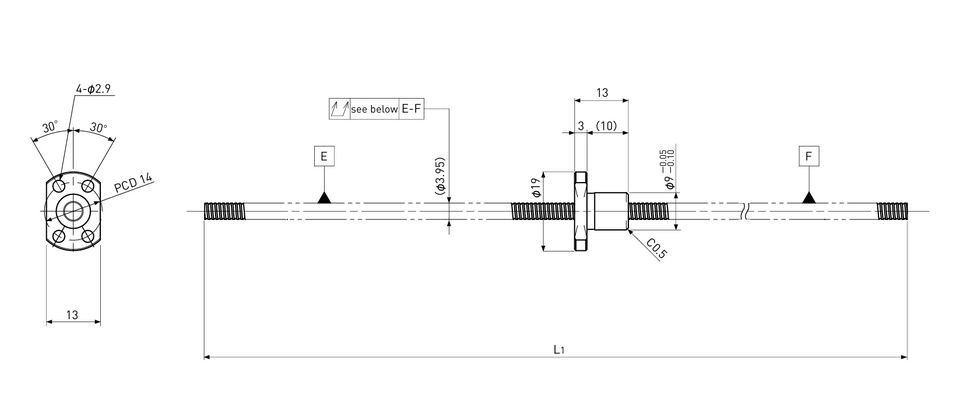

Technical Drawing
Unit: mm
Note 1）Please designate end-journal profile with your sketch.
Note 2）Absolute position of both Nuts related to the Screw Shaft is not under the control.

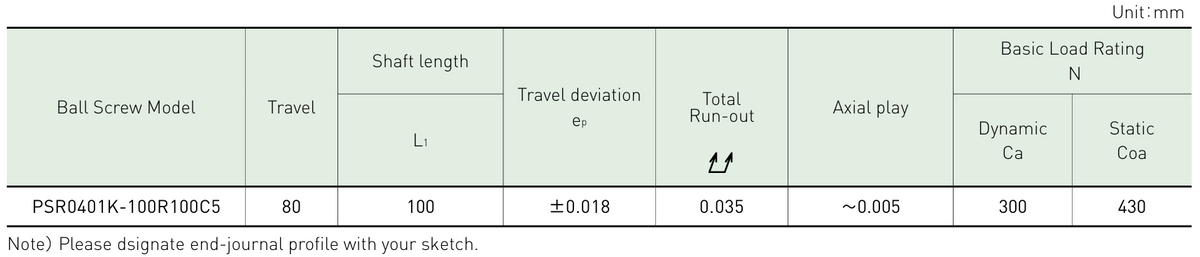

Performance Data
Unit: mm · All specifications subject to manufacturing tolerances.
Reference
Engineering resources
Datasheet, native CAD and the ball screw technical section.
PDF
PSR Series Datasheet
Full PSR Series catalog section — dimensions, load ratings, accuracy grades and end-machining patterns.
Download PDF
3D MODEL · STEP
CAD Resources
Download the native 3D / STEP model — drop it into your assembly to verify fit and envelope.
Browse 3D Model
Reference
Ball Screw Technical Section
Accuracy grades, load & life calculation, lead options and selection guidance for ball screws.
View technical section
BS-TECH
