NSRF1002
Ø10mm
Shaft Diameter
2mm
Lead
Compact
Thread Type
Configure Your Part
01
Precision Grade
?ISO ACCURACY GRADE
Your Part Number
NSRF1002-400R400
For alternate lengths or end machining, contact Amotion Systems.
Technical Specifications
NSRF1002 specifications
Fixed specifications for the NSRF1002 base model. Configurable options (length, end machining, lube, nut direction) are set in the customizer above.

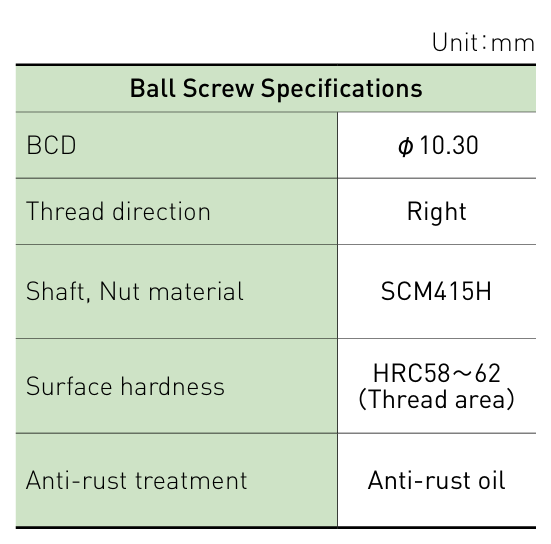

Component Specifications

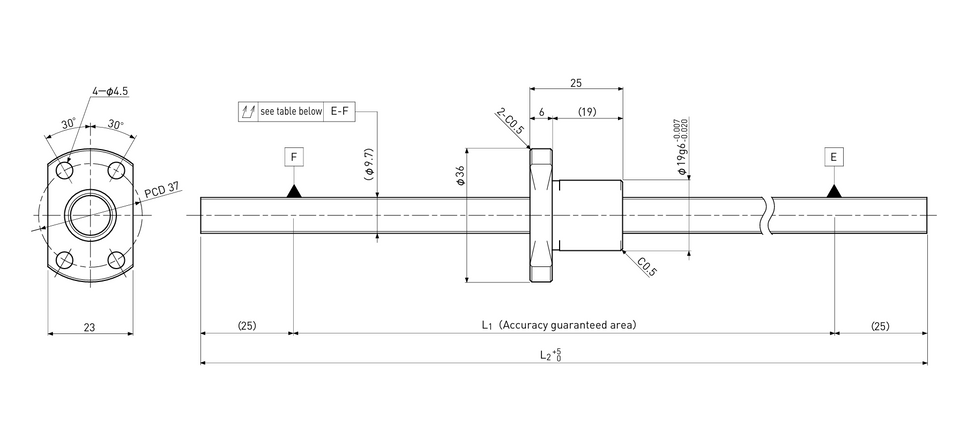

Technical Drawing
Unit: mm
Note 1）Please designate end-journal profile with your sketch.
Note 2）Absolute position of both Nuts related to the Screw Shaft is not under the control.

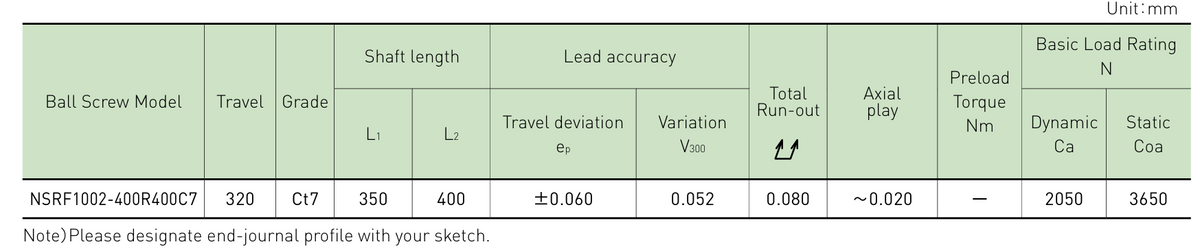

Performance Data
Unit: mm · All specifications subject to manufacturing tolerances.
Reference
Engineering resources
Datasheet, native CAD and the ball screw technical section.
PDF
NSRF Series Datasheet
Full NSRF Series catalog section — dimensions, load ratings, accuracy grades and end-machining patterns.
Download PDF
3D MODEL · STEP
CAD Resources
Download the native 3D / STEP model — drop it into your assembly to verify fit and envelope.
Browse 3D Model
Reference
Ball Screw Technical Section
Accuracy grades, load & life calculation, lead options and selection guidance for ball screws.
View technical section
BS-TECH
