NSR1002
Ø10mm
Shaft Diameter
2mm
Lead
Compact
Thread Type
Configure Your Part
01
Precision Grade
?ISO ACCURACY GRADE
Your Part Number
NSR1002-400R400
For alternate lengths or end machining, contact Amotion Systems.
Technical Specifications
NSR1002 specifications
Fixed specifications for the NSR1002 base model. Configurable options (length, end machining, lube, nut direction) are set in the customizer above.

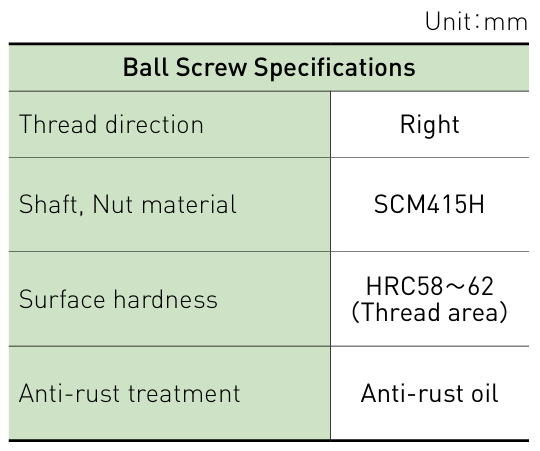

Component Specifications

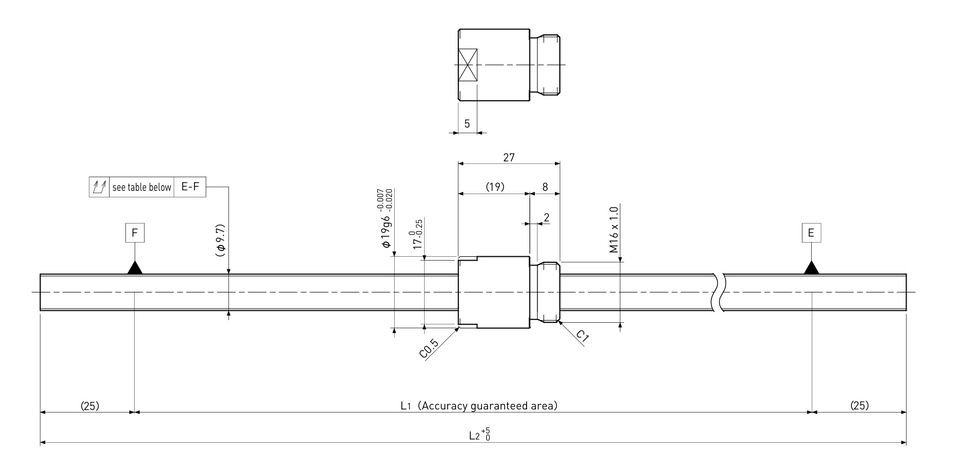

Technical Drawing
Unit: mm
Note 1）Please designate end-journal profile with your sketch.
Note 2）Absolute position of both Nuts related to the Screw Shaft is not under the control.

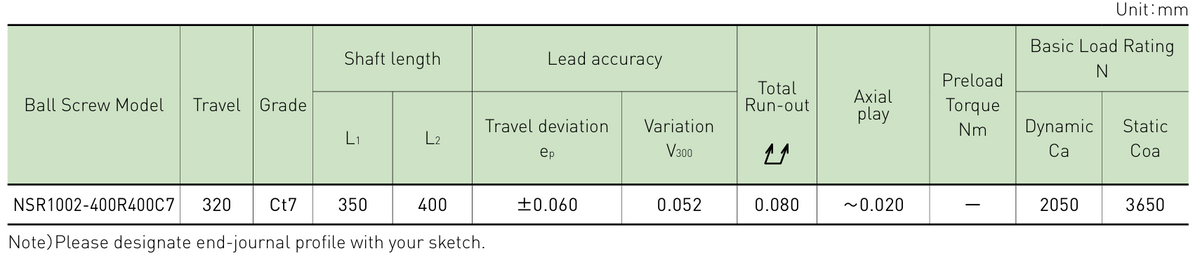

Performance Data
Unit: mm · All specifications subject to manufacturing tolerances.
